Picohi 300 ™
Experience the NEW
Photoacoustic Effect

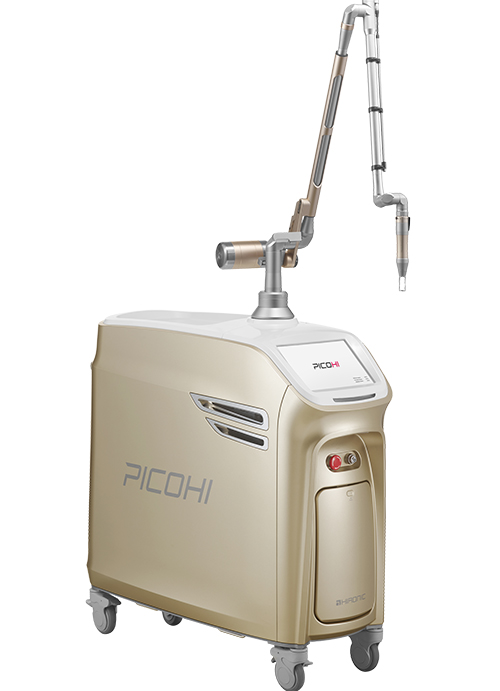

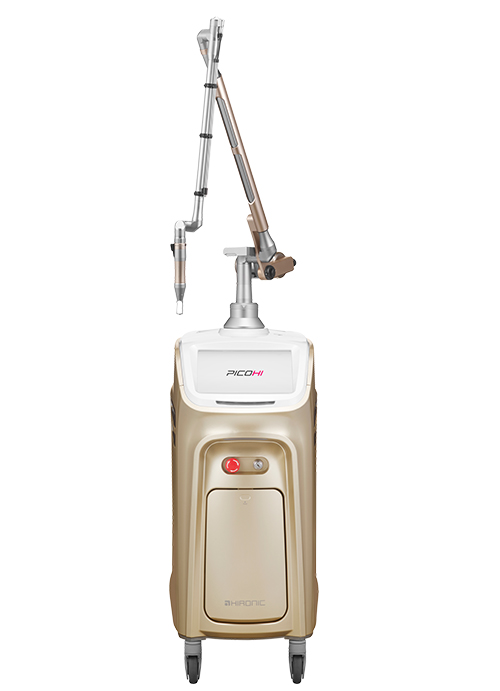

PICOHI: Advanced 300ps Picosecond Laser for Flawless Skin
Experience the power of the PICOHI Picosecond Laser, engineered with a stable 300ps pulse duration for superior results. This ultra-fast pulse creates a precise photo-mechanical effect, shattering pigment (melanosomes) without harming surrounding skin tissue. Ideal for effective tattoo removal, pigmentation correction, melasma treatment, and comprehensive skin rejuvenation. Choose PICOHI for optimal impact and unparalleled precision.
Next generation pico laser
Real 300 pulse duration
New technology provides 300ps pulse duration with excellent stability.
Photomechanical Treatment:
No Photothermal Damage
Overcoming the limitations of procedures based on the photothermal effect, photomechanical treatment enables hightly precise targeting of specific areas.
Various Handpieces for
Enhancing Skin Rejuvenation
DOE (Diffractive Optical Element) & MLA (Micro Lens Array) handpiece can be used to provide various types of treatments. They come in different sizes and allow for modification of the treatment depth depending on the treatment area.
Photomechanical effect treatment - PICOHI
Treatment principal for fine lines and pores (LIOB: Laser Induced Optical Breakdown)
ONE
After laser beam is irradiated, the photon is absorbed in the melanin.
TWO
As the melanin started emitting a number of free electron, the electron plasma density is increased that makes hot plasma ball to be formed. It spreads heat to the surrounding tissue and expands forming microbubbles in the tissue.
THREE
The micro-bubble is formed in epidermis or dermis that leads to skin regeneration through formation of elastin and collagen.
* Picohi using 300ps forms LIOB effect better than others
Why 300ps?
Stress Relaxation Time (SRT) of 1㎛ melanosome is 300ps. The shock wave caused by the picosecond pulse acts only on the melanosome without being transmitted to the surrounding tissues.
Thermal Relaxation Time (TRT) of 10–100nm tattoo ink particle is 100ps-10ns. 300ps is equipped with appropriate pulse duration to destroy smaller particles than other picoseconds lasers.
The occurence of microbubbles in the skin is more pronounced with higher peak power associated with a shorter pulse duration. A 300ps pulse duration, coupled with high peak power, enhances LIOB formation, thereby increasingt the skin rejuvenation effect.
High Power
Peak power higher than Q-switched or other pico lasers provide
maximum effect on tattoo removal,
pigment treatment and skin rejuvenation
300 picosecond pulse duration
Peak Power
Zoom H/P
1064 nm, 532 nm
Collimated H/P
1064 nm
VMLA H/P
1064 nm
ZMLA H/P
1064 nm
DOE H/P
1064 nm
DOE H/P
532 nm
High Effect
LIOB effect with PICOHI VMLA handpiece (biopsy result)
Bubble within the skin helps to regenerate tissues which create new collagen for skin rejuvenation effect. MLA & DOE handpieces of PICOHI provides effective rejuvenation treatment
Rejuvenation
VMLA Handpiece
Precise treatment at different layers from Deep dermis to Epidermis with 13mm beam size
Depth depending on the target can be adjusted(0.5mm)
ZMLA Handpiece
Cover the various lesion sizes and providing effective results
Adjustable Beam Size depending on the treatment (4~12mm)
DOE Handpiece
Synergy rejuvenation effect with Micro Lens Array (MLA ) handpieces
Very even energy uniformity with 10mm(7*7 dots) spot sizePigmentation
Collimated Handpiece
Stable and effective toning treatment with same spot size regardless of laser separation distance
1064nm collimation / 10mm spot size
Zoom Handpiece
Versatile wavelengths and adjustable spot size, Various pigmentation treatment possible.
1064nm · 532nm zoom / 2~10mm spot size
BEFORE AND AFTER TREATMENTS - PICOHI 300
High Convenience
RMS system (Remote Maintenance System)
Treatment History Record
Fast and smart treatment is possible as the parameters for previous treatments will be recorded and memorized. The saved parameters can be managed through history for future treatments which may be a similar case.
Remote Management through Cloud System
- Storage of protocols
- Device self-diagnosis and inspection
- Malfunction prevention and assist functions
SPECIFICATION - PICOHI 300
| General | |
| Main Body Dimension (W x L x H) | 457 x 1045 x 987 mm |
| Weight | 120 Kg |
| Main Voltage | 220~240 VAC, 4.4 KVA, 50/60 Hz |
| Laser System | |
| Wavelength | Nd:YAG 1064nm, 532nm |
| Pulse Duration | 300ps, 275ps |
| Peak Power | 1.67GW, 0.91GW |
| Pulse Energy (mJ) Max | 500mJ, 250mJ |
| Repetition | 5, 10HZ |
| Handpiece | |
| Zoom Handpiece | 1064nm (Spot Size: 2 to 10mm) 532nm (Spot Size: 1.5 to 7.5mm) |
| Collimated Handpiece | 1064nm (Spot Size: 10mm) |
| VMLA Handpiece | 1064nm (Beam Size: 13mm) |
| ZMLA Handpiece | 1064nm (Beam Size: 4 to 12mm) |
| DOE Handpiece | 1064nm (Beam Size: 10 x 10mm) 532nm (Beam Size: 10 x 10mm) |
TREATMENT INDICATIONS - PICOHI 300
| Pigmentation & Melasma | Freckles & Lentigines |
| Age Spots | ACNE Scars |
| Deep Dermal Rejuvenation | Lines & Wrinkles |
| Post Surgery & Scars | Tattoo Removal |
